ROCKET LAUNCH WITH GOOGLE ASSISTANT🚀

Today in this article we are going to Make Rocket Launch with google assistant with Node Mcu, 4 channel relay modules, and Nichrome. Here you will get Fully Detailed instructions for making Rocke launch with google assistant. Codes are also Included. Rocket Launch with Google assistant is a simple Rocket control by google assistant.

I have tried to provide you all the must-have Circuit Schematics and Diagrams in this article. My intention was to give you all in one guide for making Rocket launch with google assistant

If you want to make a School/ College project then this project is for you. You would not need any special knowledge for making the Rocket Launch with Google assistant So, you should definitely try it.

WATCH YOUTUBE VIDEO

Watch the Full Video and you will understand everything. Next, follow the step-by-step guide below.

Making video Rocket Launch with google assistant

This is a simple Micro-controller based car. The Micro-Controller is connected to the car. The Arduino is doing all this job. For receiving data wire we are using the Joystick module.

Rocket Launch with google assistant working

COMPONENTS REQUIRED

Item Image	Item Name	Quantity	Shop Online
	Plywood 16cm X10cm	1 No	Order Now
	Node MCU	1 No	Order Now
	4 channel relay module	1 NO	Order Now
	PVC pipe	1 no	Order Now

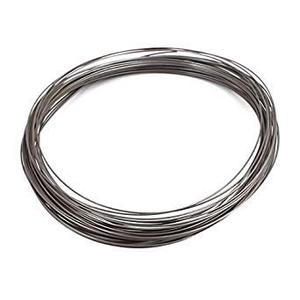

	Nichrome	1 no	Order Now
	18650 cells	1 No	Order Now
	18650 battery holder	2 No	Order Now
	Switch	1 No	Order Now
	Jumper wires	Enough	Order Now

TOOLS TEGUIRED

Tool Image	Tool Name	Shop Online
	Gun gum	Order Now
	Soldering rod with lead	Order Now
	Screwdriver	Order Now

APPS AND ONLINE SERVICES

	Arduino IDE	Downlond now

CODE

#include <ESP8266WiFi.h> #include "Adafruit_MQTT.h" #include "Adafruit_MQTT_Client.h" #define Relay1 D1 #define Relay2 D2 #define Relay3 D3 #define Relay4 D4 #define WLAN_SSID "-----------" // Your SSID #define WLAN_PASS "-------------" // Your password /************************* Adafruit.io Setup *********************************/ #define AIO_SERVER "io.adafruit.com" //Adafruit Server #define AIO_SERVERPORT 1883 #define AIO_USERNAME "------------" // Username #define AIO_KEY "-----------------------" // Auth Key //WIFI CLIENT WiFiClient client; Adafruit_MQTT_Client mqtt(&client, AIO_SERVER, AIO_SERVERPORT, AIO_USERNAME, AIO_KEY); Adafruit_MQTT_Subscribe Light1 = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME"/feeds/Relay1"); // Feeds name should be same everywhere Adafruit_MQTT_Subscribe Light2 = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/Relay2"); Adafruit_MQTT_Subscribe Light3 = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/Relay3"); Adafruit_MQTT_Subscribe Light4 = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/Relay4"); void MQTT_connect(); void setup() { Serial.begin(115200); pinMode(Relay1, OUTPUT); pinMode(Relay2, OUTPUT); pinMode(Relay3, OUTPUT); pinMode(Relay4, OUTPUT); // Connect to WiFi access point. Serial.println(); Serial.println(); Serial.print("Connecting to "); Serial.println(WLAN_SSID); WiFi.begin(WLAN_SSID, WLAN_PASS); while (WiFi.status() != WL_CONNECTED) { delay(500); Serial.print("."); } Serial.println(); Serial.println("WiFi connected"); Serial.println("IP address: "); Serial.println(WiFi.localIP()); mqtt.subscribe(&Light1); mqtt.subscribe(&Light3); mqtt.subscribe(&Light2); mqtt.subscribe(&Light4); } void loop() { MQTT_connect(); Adafruit_MQTT_Subscribe *subscription; while ((subscription = mqtt.readSubscription(20000))) { if (subscription == &Light1) { Serial.print(F("Got: ")); Serial.println((char *)Light1.lastread); int Light1_State = atoi((char *)Light1.lastread); digitalWrite(Relay1, Light1_State); delay(2000); digitalWrite(Relay1, LOW); } if (subscription == &Light2) { Serial.print(F("Got: ")); Serial.println((char *)Light2.lastread); int Light2_State = atoi((char *)Light2.lastread); digitalWrite(Relay2, Light2_State); delay(2000); digitalWrite(Relay2, LOW); } if (subscription == &Light3) { Serial.print(F("Got: ")); Serial.println((char *)Light3.lastread); int Light3_State = atoi((char *)Light3.lastread); digitalWrite(Relay3, Light3_State); delay(2000); digitalWrite(Relay3, LOW); } if (subscription == &Light4) { Serial.print(F("Got: ")); Serial.println((char *)Light4.lastread); int Light4_State = atoi((char *)Light4.lastread); digitalWrite(Relay4, Light4_State); delay(2000); digitalWrite(Relay4, LOW); digitalWrite(Relay3, HIGH); delay(2000); digitalWrite(Relay3, LOW); digitalWrite(Relay2, HIGH); delay(2000); digitalWrite(Relay2, LOW); digitalWrite(Relay1, HIGH); delay(2000); digitalWrite(Relay1, LOW); } } } void MQTT_connect() { int8_t ret; if (mqtt.connected()) { return; } Serial.print("Connecting to MQTT... "); uint8_t retries = 3; while ((ret = mqtt.connect()) != 0) { Serial.println(mqtt.connectErrorString(ret)); Serial.println("Retrying MQTT connection in 5 seconds..."); mqtt.disconnect(); delay(5000); retries--; if (retries == 0) { while (1); } } Serial.println("MQTT Connected!"); }

CIRCUIT DIAGRAM

STEPS TO MAKING

I have divided the joystick control car into several steps. By this, you can understand the Arduino car more easily. Please don’t skip any step otherwise it will be difficult to replicate.
